    Table top Refrigerated centrifuge benchtop ultracentrifuge with vector control system

    Ask Lasest Price
    Brand Name : CENLEE
    Model Number : CenLee18C
    Certification : ISO9001/13485,CE
    Price : negotiable
    Payment Terms : L/C, T/T, D/P
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    Table top Refrigerated centrifuge benchtop ultracentrifuge with vector control system

    Table top Refrigerated centrifuge benchtop ultracentrifuge with vector control system


    Features:


    • Intelligent microcomputer control for enhanced system stability: Large-screen LCD display with user-friendly interface, supporting both touch and button operation. Real-time synchronization displays speed (RPM), centrifugal force (RCF), time, temperature, rotor number, rotor capacity, program groups, acceleration/deceleration settings, etc. Parameters and alarm information can be easily read, stored, and modified during operation without stopping the machine.

    • Real-time RCF/RPM conversion and setting for quick adjustments. Supports instant centrifugation and continuous centrifugation modes.

    • Variable-frequency AC motor drive with FOC (Field-Oriented Control) vector control system, ensuring precision, low noise, and energy efficiency.

    • 9 acceleration modes / 10 deceleration modes, combined with three-stage damping shock absorption and custom high-quality NR (Natural Rubber) shock absorbers to prevent sample resuspension and optimize centrifugation results.

    • Powder-coated exterior shell for uniform surface finish, corrosion resistance, and scratch protection.

    • Centrifuge chamber made of premium 304 stainless steel for long-lasting durability.

    • Unique rubber isolation ring design prevents condensation from entering the motor, protecting it and extending its lifespan.

    • Fluorine-free compressor unit (imported compressor) enables rotor pre-cooling in standby mode. Utilizes eco-friendly refrigerants for rapid cooling, low noise, and energy-efficient pre-cooling design.

    • Dual mechanical and electronic door locks combine reliability with advanced safety.

    • Multi-level safety protections, including overspeed, overtemperature, door auto-lock, and triple protective sleeves, ensuring user and equipment safety.

    • Countdown timer under one minute, displayed in seconds.


    Technical Parameter

    ModelCenLee18CTiming range0-99.9min
    Maximum speed18500r/minPower supplyAC 220V 50Hz 16A
    Maximum RCF23797×gMachine noise≤60dB(A)
    Maximum capacity1000mlPower1200W
    Sample range0.5ml-100mlN.W95KG
    Speed Accuracy±10r/minAcc/Dec fastest time25~30s
    Temperature range-20℃~+40℃Dimensions700×660×410mm/95kg
    Temperature accuracy±1℃Packing size720x700x540mm/105kg

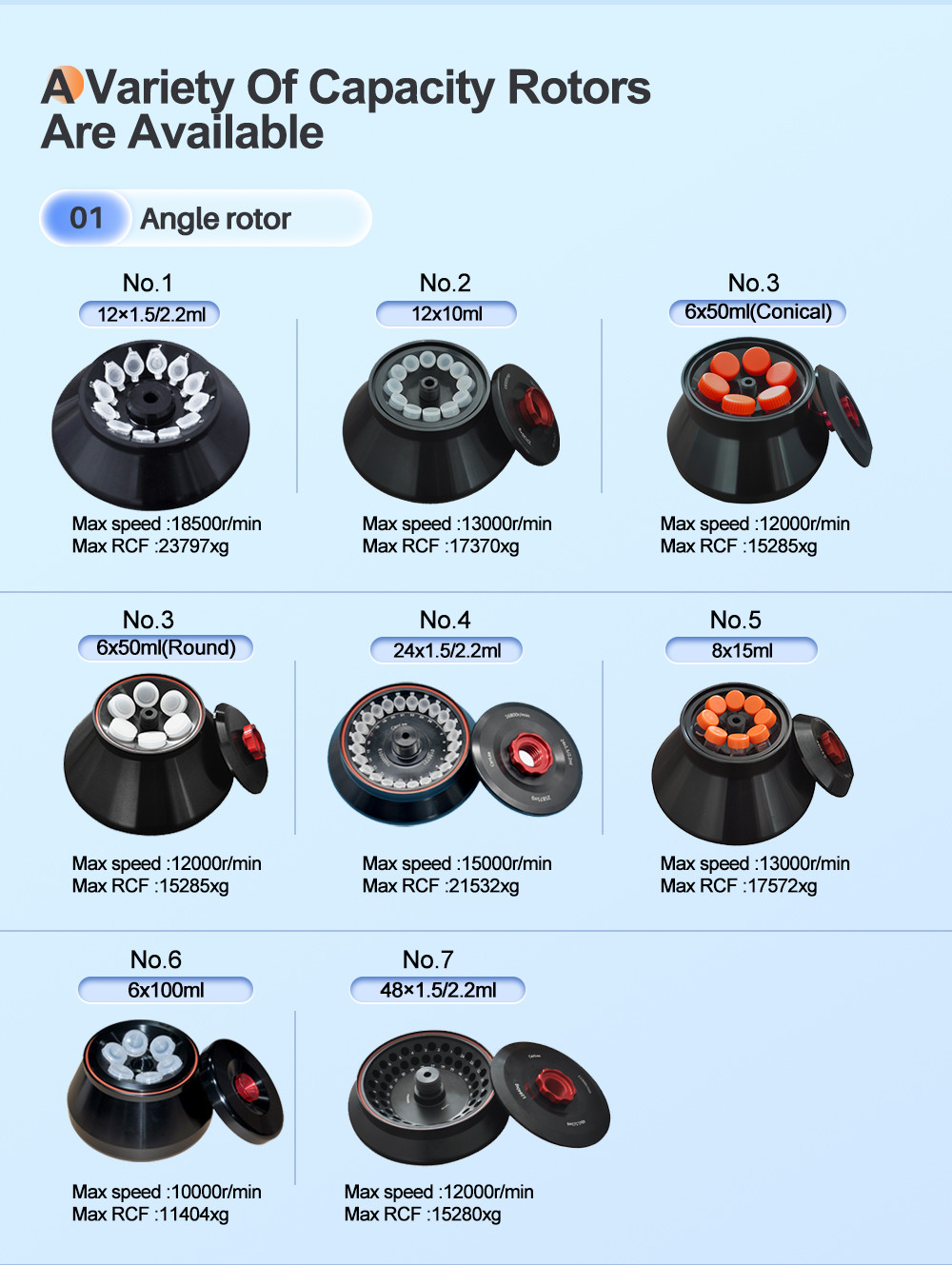

    CenLee18C Rotor

    Rotor typeNo.CapacityMax Speed(r/min)Max RCF(×g)
    Main machineCenLee18C1850023797
    Angle rotorNO.112×1.5/2.2ml1850023797
    Angle rotorNO.212×10ml1300017370
    Angle rotorNO.36×50ml1200015285
    Angle rotorNO.424×1.5/2.0ml1500021532
    Angle rotorNO.58×15ml1300017572
    Swing out rotorNO.64x250ml40003500
    4x1x50ml adaptor
    4x5x10ml adaptor
    4x10x5ml adaptor
    Swing out rotorNO.74x100ml50004390
    Swing out rotorNO.88x50ml42003100
    4x50ml
    32x10/15ml vacuum blood tube
    24x10/15ml vacuum blood tube
    16x10/15ml vacuum blood tube
    Swing out rotorNo.92x2x96 well40002800
